• Measuring range 0-5.000 kPa/0-8.000 kPa. EM-50 and EM-80 models.
  • Accuracy: above 1% of the applied force in a range between 2% and 100% of the FS.
  • Configurable pumping rate: 170 ± 5 ml/min for cardboard and 96 ± 6 ml/min for paper.
  • Sample holding force adjustable by means of pneumatic regulator (maximum force of 7.000 N).
  • RS-232 interface for connection to management and control programs.
  • USB connection for maintenance jobs or for connection to printers.
  • Readings with a resolution of 0.004 % of the FS.
  • Statistic test. Average value, standard deviation and max.and min. values.
  • Automatic test cycling with break detection and return to start position.
  • Different configurable units for pressure standards.
  • CE mark.

Cod: 020101

Standard: ISO 2758, TAPPI T403 y T807, ASTM D477, BS 3137.

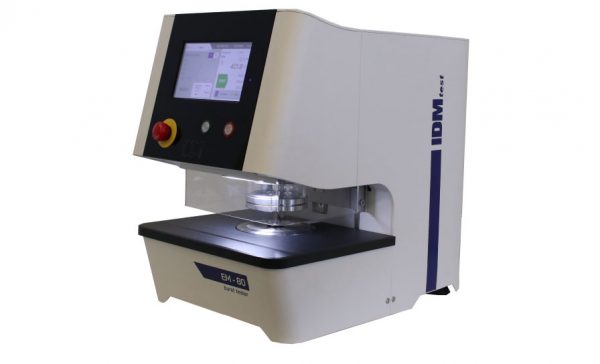

Laboratory equipment with pneumatic clamping to determine Mullen burst in board and paper. Large colour touch screen burst values representation, bursting curve, BEA values and full statistics. Easy handling and robust equipment, Easy change of the membrane. Possibility to test burst in wet papers. PC connection for machine monitoring trough test software and USB connection to printer and update jobs.
